Low quiescent current LDOs

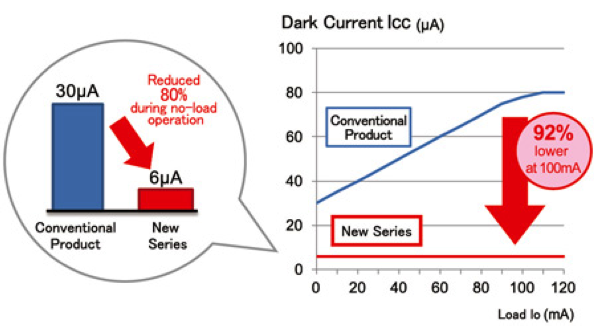

ROHM has developed the BD7xxLx series of high-voltage (50V) LDO regulators for automotive applications featuring the industry's lowest dark current (6µA) – 80% lower than conventional LDO regulators – utilizing a proprietary circuit design, reducing power consumption significantly.
Together with the ultra-low IQ series ROHM is also offering BD4xxMx series, which is not so focused on the current consumption but is offering pin compatible offerings against competitor devices from Infineon, On-Semi and ST Microelectronics.
In later stage there is also the plan to introduce Linear Regulators with integrated Reset and optional WDT.
The main features of this series are:
- Ultra-low or low quiescent current

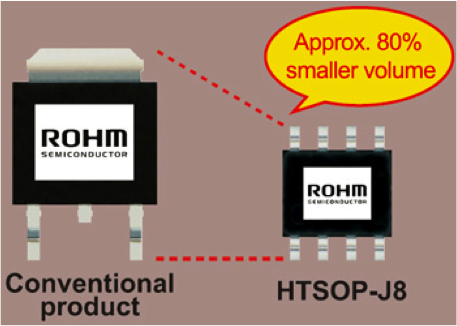

- Compact or standard packages (HTSOP, SOT223, TO252 or TO263)
- Output current capability: 200mA or 500mA
- High output voltage accuracy: ±2%
- Low saturation voltage by using PMOS output transistor
- Integrated overcurrent protection to protect the IC from damage caused by output short-circuiting
- Integrated thermal shutdown to protect the IC from overheating at overload conditions
- Low ESR ceramic capacitor can be used as output capacitor
Line-up
Part Number | VIN | VOUT | IOUT | Circuit Current | Package | Status |
---|---|---|---|---|---|---|
BD7xxL2 Series |
4.37-45V max. 50V |
3.3 & 5.0V ±2% |
200mA | 6µA | HTSOP | available |
SOT223 | coming soon | |||||
TO252 | available | |||||
TO263 | coming soon | |||||
BD4xxM2 Series |
4.37-45V max. 50V |
3.3 & 5.0V Adj.:2.8-12V ±2% |
200mA | 40µA | HTSOP | coming soon |
SOT223 | coming soon | |||||
BD7xxL5 Series |
4.37-45V max. 50V |
3.3 & 5.0V ±2% |
500mA | 6µA | TO252 | available |
TO263 | coming soon | |||||
BD4xxM5 Series |
4.37-45V max. 50V |
3.3 & 5.0V Adj.: 2.8-12V ±2% |
500mA | 40µA | TO252 | coming soon |
TO263 | coming soon | |||||
BD4275 | 5.6-45V |
Fixed: 5.0V ±2% |
500mA | 60µA | TO252 | coming soon |
TO263 | coming soon |
More info about ROHM's LDO line-up: http://www.rohm.com/web/global/search/parametric/-/search/Linear%20Regulators
