RFS60TZ6S (Neues Produkt)
650V 60A, TO-247-2L, Ultra Soft Recovery Type, Ultra Fast Recovery Diode

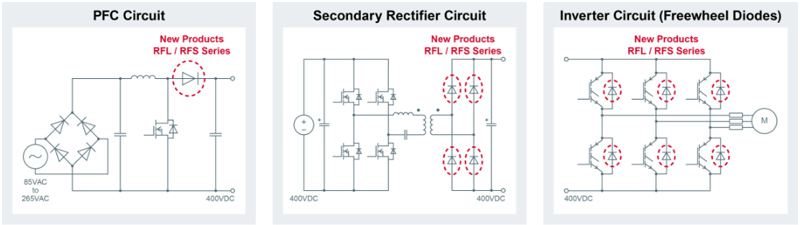

RFS60TZ6S is a silicon epitaxial planar type ultra fast recovery diode featuring ultra high speed trr and soft recovery. Ideal for general rectification applications and PFC (continuous current mode) applications.

Data Sheet Kaufen
* Dieses Produkt entspricht der Standardqualifizierung.
Für den Automobilbereich kontaktieren Sie bitte unser Sales-Team.
Data Sheet Kaufen

Produktdetails


Teilenummer | RFS60TZ6SGC13
Status | Empfohlen
Gehäuse | TO-247GE-2L
Einheitenmenge | 600
Minimale Gehäusemenge | 30
Gehäusetyp | Tube
RoHS | Ja

Spezifikationen:

Grade

Standard

Configuration

Single

Package Code

TO-247

Number of terminal

2

VRM[V]

650

Reverse Voltage VR[V]

650

Average Rectified Forward Current IO[A]

60.0

IFSM[A]

250.0

Forward Voltage VF(Max.)[V]

2.3

IF @ Forward Voltage [A]

60.0

Reverse Current IR(Max.)[mA]

0.01

VR @ Reverse Current [V]

650

trr(Max.)[ns]

55

IF @ trr [mA]

500

IR @ trr [A]

1.0

Storage Temperature (Min.)[°C]

-55

Storage Temperature (Max.)[°C]

175

Package Size [mm]

15.94x20.95 (t=5.22)

Eigenschaften:

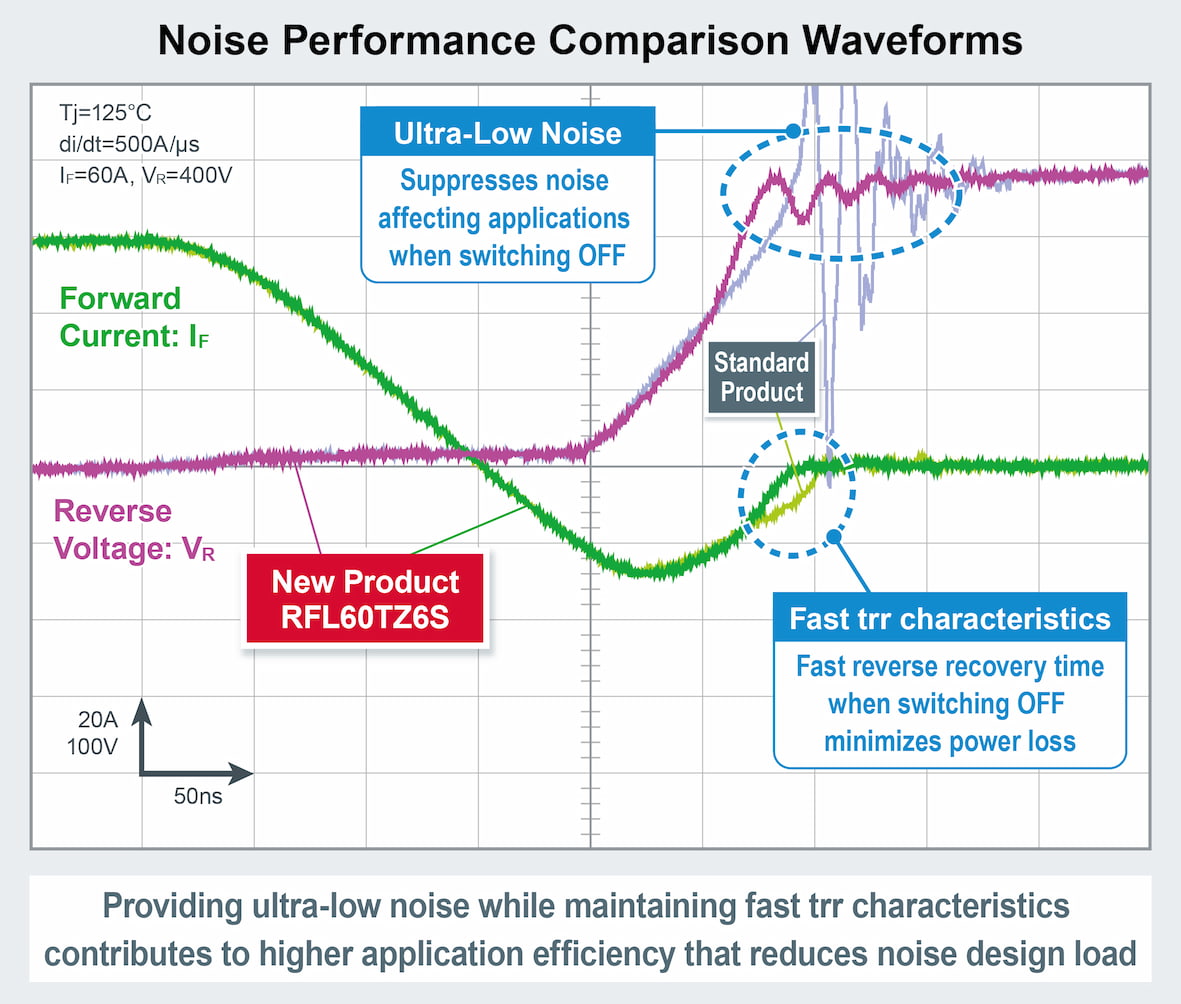

  • Ultra fast recovery / Ultra soft recovery type
  • Ultra low switching loss
  • High current overload capacity
