BD63800MUF-C
40 V max., verbrauchsarmer bipolarer PWM-Schrittmotortreiber für die Automobilindustrie
Für neue Designs nicht empfohlen
BD63800MUF-C
40 V max., verbrauchsarmer bipolarer PWM-Schrittmotortreiber für die Automobilindustrie
Produkte, die nicht für neue Designs verwendet werden können (Nicht empfohlen für Designabweichungen).
Produktdetails
Funktionalen Sicherheit:
Spezifikationen:
Power Supply Voltage (Max.) [V]
28
Power Supply Voltage (Min.) [V]
6
Vcc (Max.)[V]
40
Iout (Max.)[A]
1.21
Iout Peak (Max.)[A]
1.35
Output On Resistance (Typ.)[Ω]
0.75
Step
to 1 / 32
MIX DECAY Function
Yes
Single power supply input
Yes
Automotive class
Yes
Interface
CLK-IN/Serial Interface(SPI)
Operating Temperature (Min.)[°C]
-40
Operating Temperature (Max.)[°C]
125
Package Size [mm]
5x5 (t=1)
Common Standard
AEC-Q100 (Automotive Grade)
Eigenschaften:
- AEC-Q100 Qualified (Grade 1)
- Functional Safety Supportive Automotive Products
- Low ON Resistance DMOS Output
- CLK-IN Drive Mode
- PWM Constant Current Control (Separately Excited)
- Built-in Spike Noise Cancel Function
(No external noise filter is required) - Supported Modes: Full step, 1/2, 1/4, 1/8, 1/16 and 1/32 step
- Excitation Mode Switching Timing Free
- Current Decay Mode Switch Function
Mix Decay: Linear Adjustment of Slow Decay / Fast Decay Ratio
Auto Decay: Automatic Switch of Slow Decay / Fast Decay - Selectable Rotation Direction: Clockwise/Counter Clockwise
- Power Save Function
- Built-in Pull-down Resistors for Logic Input
- Power-on Reset Function
- Malfunction prevention function w/o power supply (Ghost Supply Prevention Function)
- Thermal Shutdown Function (TSD)
- Thermal Warning Function (TW)
- Over Current Protection Function (OCP)
- Over Voltage Lock-out Function (OVLO)
- Under Voltage Lock-out Function (UVLO)
- Under Voltage Motor Hold Function
- Open Detection Function
- Stall Detection Function
- Adjacent Pin Short Protection
Referenzdesign / Anwendungsevaluierungskit

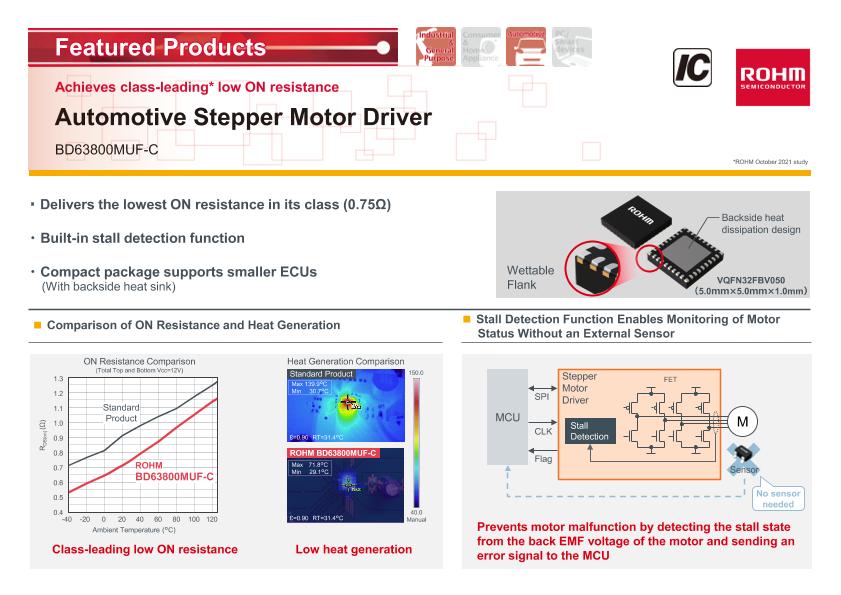

Produktvideo & Katalog
