Sound Device Control Kit
Enables a series of evaluations utilizing both hardware and software
Development Support Tool Features

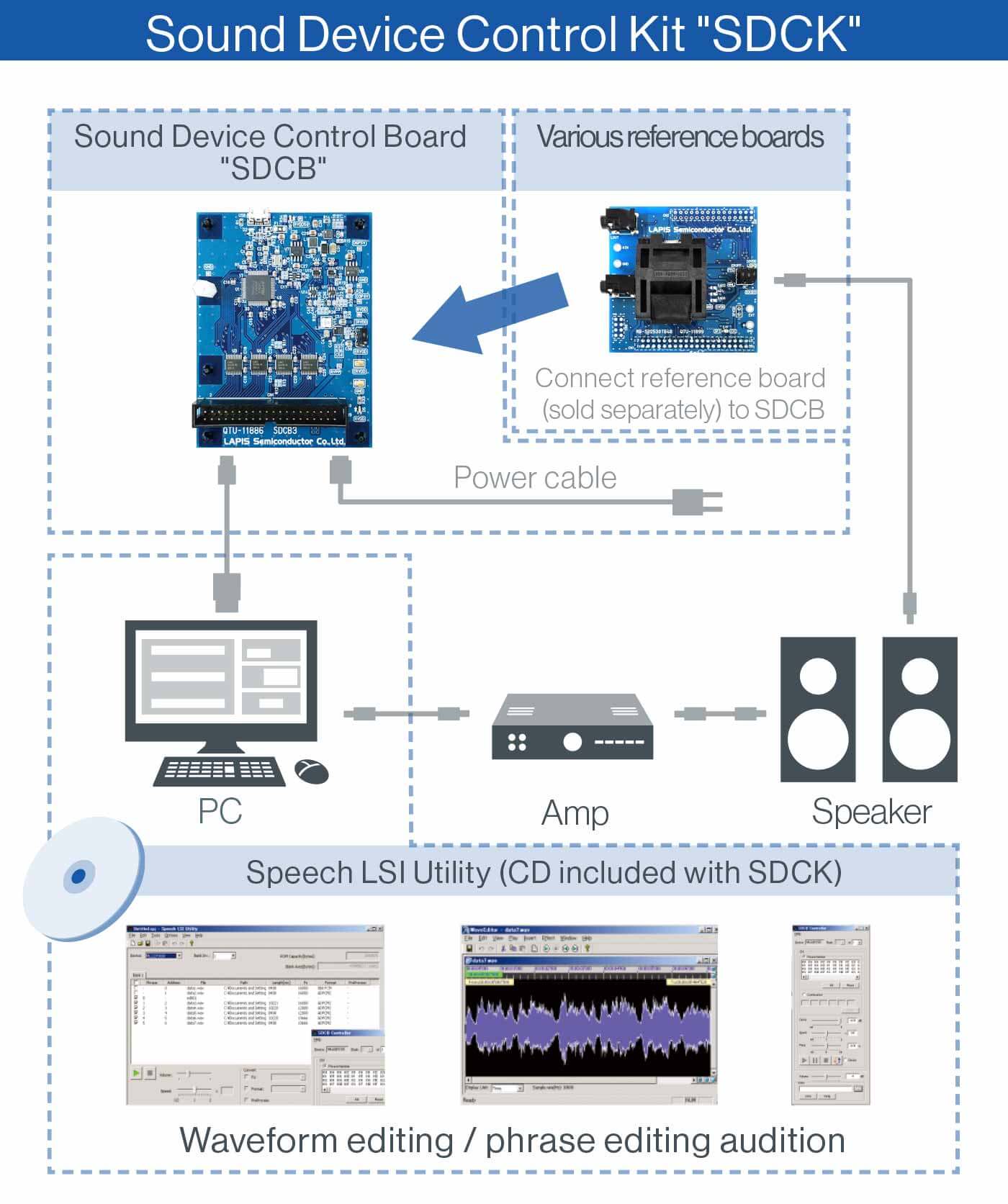

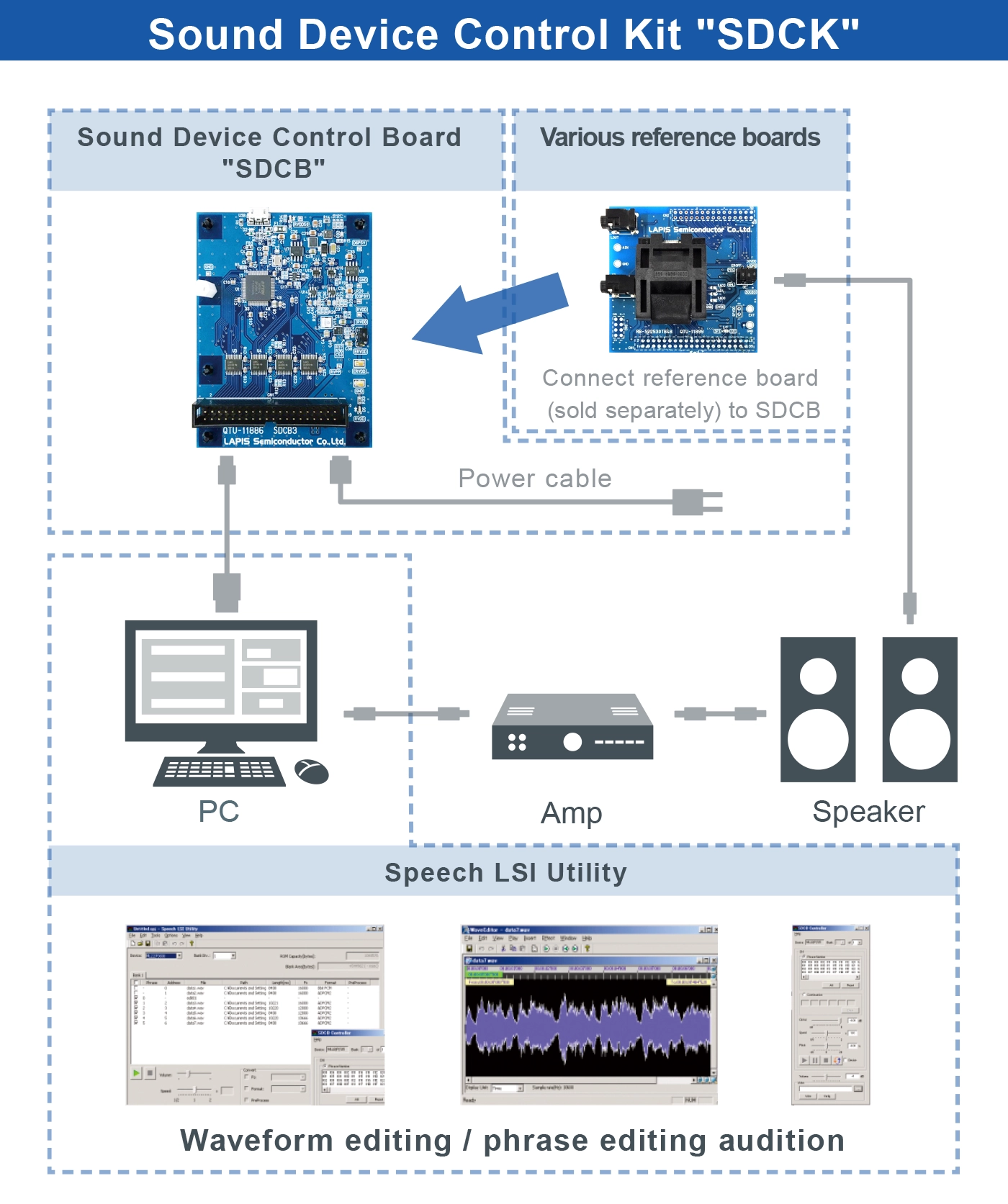

Sound Device Control Kit "SDCK"
This development tool can perform everything from the creation of voice data to the writing of data to the voice synthesis LSI, to the trial listening.
* Two types, "SDCK" and "SDCK3", are available depending on the target LSI. For details, refer to "Lineup".
Speech LSI Utility
A tool to create voice data for Speech Synthesis LSI.
The created audio data can be simulated on a PC.
A tool for editing the waveform of original sound data.
This tool is for writing data to the Speech Synthesis LSI on the reference board via the following hardware SDCB, and for listening.
Commands to be sent to the Speech Synthesis LSI can be easily operated in GUI format.
Sound Device Control Board "SDCB2" "SDCB3"
This tool is to write data to the Speech Synthesis LSI on the reference board and to audition according to the operation of the SDCB Controller.
The reference board is replaceable and supports the Speech Synthesis LSI of the connected reference board.
* Writing for mass production is not covered by the warranty. For mass production, please use the writing shipment at the LAPIS Technology factory or use an on-board writer.
* Two types, "SDCB2" and "SDCB3", are available depending on the target LSI. For details, refer to "Lineup".
Reference board (sold separately)
It is prepared according to each Speech Synthesis LSI.
Each board is equipped with a speaker jack, so you can easily listen to it just by connecting a speaker.
It can also be used when connected to your system board.
* Refer to "Lineup" for the lineup of each reference board.
